Process Mapping and Value Stream Mapping
A customer has been waiting 42 minutes for a service that takes only 6 minutes of actual work. The problem is not the worker's effort - it is the invisible waiting, rework, handoffs and approvals hiding between steps.
Process mapping makes the work visible. Value stream mapping goes one level deeper: it shows where time, inventory and information stop flowing.
- Process mapping shows the sequence of activities, decisions, handoffs and responsibilities in a process.
- Value stream mapping shows the flow of material and information, with time, inventory and waste visible on the same map.
- Use a process map when you need clarity on who does what, in what order.
- Use a value stream map when you need to reduce lead time, waiting, WIP, rework or non-value-added work.
- The interview answer structure is: define the process - map current state - add data - identify waste - design future state - implement and track.
- The key metric is not just cycle time; track lead time, value-added ratio, first-pass yield, WIP and bottleneck utilisation.
- The biggest mistake is drawing a pretty flowchart without going to the real workplace, collecting times or validating the map with operators.
Big Picture: A Process Map Shows Steps, a Value Stream Map Shows Flow
Think of process mapping as an X-ray of work. It shows the skeleton: activities, decisions, approvals and handoffs. Value stream mapping adds the blood flow: time, inventory, information signals, queues and waste.
If a process map tells you "what happens", a value stream map tells you "why the customer is still waiting."
Core Explanation: How to Use Process Mapping and VSM
A process is a repeatable set of activities that converts inputs into outputs for a customer. In interviews, always name the customer first - external customer, internal team, plant, store, branch, rider, patient or regulator.
A process map is best when confusion comes from sequence and ownership. For example, in a loan approval process, it can show where the application moves from sales to credit to risk to operations.
A value stream map is best when the process is known but performance is poor. For example, if delivery lead time is high, VSM separates actual working time from waiting time across pickup, sorting, line-haul and last-mile delivery.
The 6-Step Method to Build a Useful Map
Do not start with software. Start with the real workplace, the real customer and the real flow.
The Japanese lean idea of gemba means the real place where work happens. In an operations answer, saying "I would validate the map at the gemba" signals practical maturity.
Symbols and Layers You Should Be Able to Explain
You do not need to memorise every symbol. You do need to explain the logic of the map clearly.
For timing terms, keep the basics clean: cycle time is time to complete one unit at a step, lead time is total elapsed time from request to delivery, and takt time is the demand-paced rhythm. If these terms feel fuzzy, revise Cycle Time, Takt Time & Lead Time Explained before attempting a VSM case.
Metrics to Track on a Value Stream Map
A value stream map without numbers is only a sketch. In interviews, use 4-6 metrics and connect each one to a managerial action.
For a mathematical reading of WIP, throughput and lead time, connect VSM to Little's Law and reading a process mathematically.
Worked Example: Reading a Simple Value Stream
Suppose an e-commerce return process has four steps:
Total processing time = 4 + 6 + 8 + 5 = 23 minutes.
Total waiting time = 0 + 180 + 240 + 120 = 540 minutes.
Total lead time = 23 + 540 = 563 minutes.
Value-added ratio = 23 / 563 x 100 = 4.1%.
The improvement opportunity is not to make the quality check 1 minute faster. The real opportunity is to attack queues before receiving, quality check and refund approval. This is why VSM is powerful: it stops managers from optimising a visible task while ignoring invisible delay.
Types of Process Maps and When to Use Each
Choose the map based on the problem. A wrong map can make a simple problem look complex or hide the real issue.
Definitions
- Process mapping: A visual method for showing process steps, decisions, handoffs and responsibilities from start to finish.
- Value stream mapping: A lean method for visualising material and information flow to expose waste and design a better future state.
- Value-added activity: Work that changes the product or service in a way the customer is willing to pay for.
- Non-value-added activity: Work that consumes time or resources without directly increasing customer value.
- Current-state map: A fact-based picture of how the process actually works today.
- Future-state map: A redesigned picture of how the process should flow after waste is removed.
Case Study: Delhivery and the Parcel Journey
Delhivery's parcel logistics network is a strong Indian example of why mapping end-to-end flow matters more than improving one isolated activity.

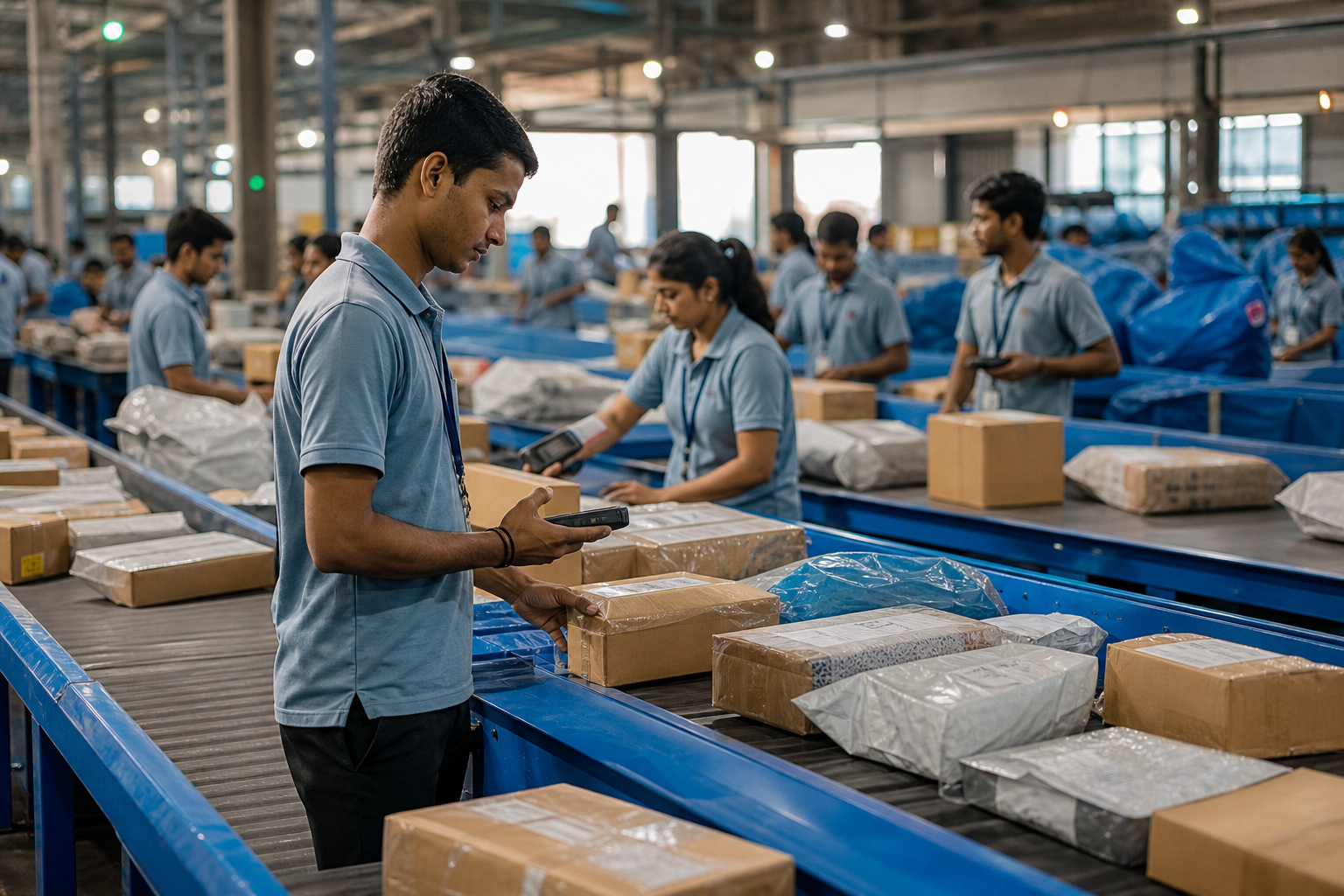

In parcel logistics, the customer sees only two moments: order pickup and final delivery. Inside the operation, the parcel may move through pickup, first-mile consolidation, sorting, bagging, line-haul movement, destination sorting, rider allocation and last-mile delivery.
The tension is that each individual step can look efficient, yet the total lead time can still disappoint the customer. Why? Because parcels may wait between steps, miss a dispatch cut-off, sit in an exception queue, get rescanned, or move in batches larger than the next step can absorb.
A process map would show Delhivery's parcel journey as a sequence of operational steps. A value stream map would add the real management questions: where is the parcel waiting, where is WIP building up, which scan triggers the next move, where does information arrive late, and which exception creates rework?
The primary driver of improvement is end-to-end visibility of flow. Supporting drivers include scan discipline, network design, dispatch scheduling, capacity balancing at sort centres, and exception management. The lesson for interviews: do not say "logistics improves because of technology" alone. Technology helps only when the process map tells people what signal to act on and where flow is breaking.
How AI Changes Process Mapping and Value Stream Mapping
AI is changing process mapping in practical ways, not by replacing the manager's judgment but by making hidden process behaviour visible faster.
- Process mining from event logs: Tools can reconstruct actual process flows from ERP, CRM, ticketing or warehouse system timestamps. This reveals variants that SOPs often miss.
- Computer vision and IoT timing: In factories, warehouses and stores, sensors can estimate queue length, movement, waiting and equipment stoppages more continuously than manual observation.
- Simulation and digital twins: Once the current-state map is measured, AI-assisted simulation can test whether adding capacity, changing batch size or resequencing work will improve flow. For the next level, revise using AI and simulation to test a process design.
Use ChatGPT or Claude to convert interview case notes into a draft current-state map: paste the process description, ask for steps, handoffs, queues, likely wastes and missing data fields. Then validate the output manually - AI can structure the map, but it cannot confirm what actually happens on the shop floor or service desk.
Interview Relevance
"A quick-commerce company says customers are complaining about delayed deliveries. How would you use process mapping or value stream mapping to diagnose the problem?"
Use the phrase: "I would not optimise the most visible step first. I would map the end-to-end value stream, quantify waiting and WIP, then attack the constraint." That sounds like an operations thinker.
Common Mistake
The mistake: Candidates draw a neat flowchart and call it value stream mapping. Why it costs marks: VSM requires time, WIP, information flow and waste - not just boxes and arrows. One-line fix: After mapping steps, always add lead time, processing time, WIP, first-pass yield and the current-state to future-state improvement logic.
