Most students can name a DBMS. Far fewer can explain how one actually works from the inside. When a user types a SQL query and hits enter, what happens between that keystroke and the result appearing on screen? The answer lies in the structure of DBMS - the internal architecture that makes all of it possible.

This guide breaks down the overall structure of DBMS into its three core components, explains the three levels of database architecture, covers the role of the Database Administrator, and shows exactly how each piece connects to the others. Whether you are preparing for GATE, a database interview, or a university exam, this is the complete reference you need.

Understanding the structure of DBMS is also a prerequisite before diving into more advanced topics. If you are new to databases entirely, Board Infinity's guide on ACID Properties in DBMS gives you the foundational guarantees that the structure you are about to learn is designed to uphold.

Who This Guide Is For

DBMS Structure vs DBMS Architecture - What Is the Difference?

Before explaining the structure of DBMS, it is important to clear up one of the most common points of confusion in database courses: structure and architecture are not the same thing.

The structure of DBMS refers to the internal functional modules - the actual software components that process queries, manage storage, and handle data on disk. The architecture of DBMS refers to the design blueprint - how many tiers the system spans (1-tier, 2-tier, 3-tier) and how users interact with the database system from the outside.

A DBMS can be deployed in a 2-tier or 3-tier architecture while still having the same internal structure. The structure is fixed; the architecture is a deployment decision. This distinction matters especially in relational model in DBMS contexts, where the logical design at the architecture level is built on top of the physical structure underneath.

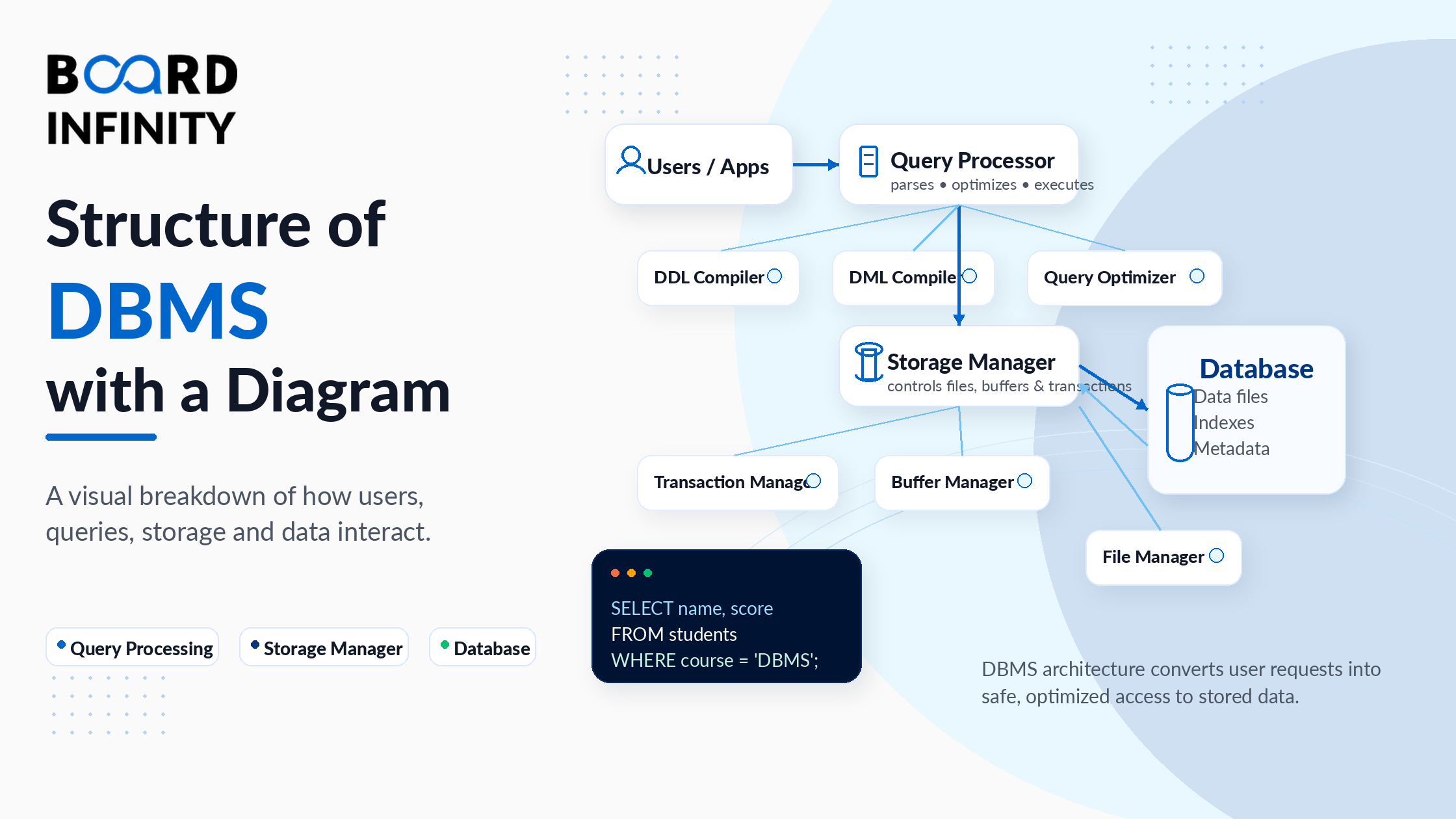

Overall Structure of DBMS: The Three Core Components

The overall structure of DBMS consists of three major components that work in sequence every time a database operation is performed. A query enters through the Query Processor, data access and consistency is handled by the Storage Manager, and actual data lives in Disk Storage.

Here is how all three components fit together in the database system structure:

Component 1: Query Processor

The Query Processor is the entry point of the DBMS structure. It receives queries from users or application programs and converts them into a form the system can execute. Think of it as the translator and planner combined - it takes human-readable SQL and produces an optimised execution plan.

The Query Processor has four sub-components, each handling a distinct step in the translation pipeline.

To see the Query Processor in action, consider this simple SQL query:

Component 2: Storage Manager

The Storage Manager sits between the Query Processor and the actual data on disk. It is the component in the database system structure responsible for enforcing rules, maintaining consistency, and physically moving data in and out of memory. It is also called the Database Control System.

Every time the Query Processor produces an execution plan, the Storage Manager carries it out - while simultaneously checking authorisations, applying integrity constraints, and managing transactions. The four sub-modules each own a specific responsibility.

The Transaction Manager deserves special attention because it is the component that makes ACID properties in DBMS real. Atomicity, Consistency, Isolation, and Durability are guarantees - the Transaction Manager is the enforcement mechanism behind them. Understanding deadlock in DBMS also becomes clearer once you know it is the Transaction Manager that detects and resolves conflicting concurrent transactions.

Component 3: Disk Storage

Disk Storage is the bottom layer of the database system structure - the persistent physical layer where all data ultimately lives. Unlike the Query Processor and Storage Manager, which are runtime software components, Disk Storage represents actual data structures written to disk.

It has three sub-components, each serving a distinct storage purpose.

The Three Levels of DBMS Architecture

Beyond the three physical components, the overall structure of DBMS is also described in terms of three levels of abstraction. These levels define how different users see and interact with the same underlying data - a concept known as data independence.

This three-level model is defined by the ANSI/SPARC architecture standard and is a common topic in both GATE and university DBMS papers.

The three levels are connected through schema mapping. When a query arrives at the External Level, it is mapped to the Conceptual Level schema, which in turn maps to the Internal Level for actual data retrieval. This mapping is what enables data independence - you can restructure physical storage at the Internal Level without breaking any application at the External Level, as long as the Conceptual Level schema stays the same.

This concept directly relates to how functional dependency in DBMS governs the logical structure at the Conceptual Level, independently of how data is stored below it.

Role of the Database Administrator (DBA)

The Database Administrator is the person responsible for managing the DBMS across all three levels. The DBA is not a component of the software structure itself, but is the human authority that configures and maintains it. In any production database environment, the DBA is the person who keeps the entire structure functioning correctly.

How a SQL Query Travels Through the DBMS Structure

Putting all three components together, here is a complete trace of what happens from the moment a user submits a SQL query to the moment they see a result.

Conclusion

The structure of DBMS is not abstract theory - it is the engineering blueprint that makes every database query fast, accurate, and secure. The three core components each own a precise responsibility: the Query Processor translates and optimises, the Storage Manager enforces rules and manages access, and Disk Storage holds the data with the metadata and indexes needed to retrieve it efficiently.

The three levels of DBMS architecture - Internal, Conceptual, and External - exist to provide data independence, allowing different parts of the system to evolve without breaking each other. The DBA is the human layer that manages it all.

The three things to take away from this guide: first, the Query Processor and Storage Manager are software components that run in memory; Disk Storage is the only persistent layer. Second, the three levels of architecture are about abstraction and independence, not about network tiers. Third, every design decision in a DBMS - from indexing strategy to transaction isolation - exists to optimise the flow of a query through this structure.

Next, go deeper into the components you have just learned about. Understanding indexing in DBMS will show you exactly how the Disk Storage layer uses B+ Trees to make the Query Optimizer's job possible. And understanding normalisation in DBMS will show you how the Conceptual Level schema is designed to eliminate redundancy at the logical layer.

Frequently Asked Questions

Q1. What are the three components in the structure of DBMS? The three core components are the Query Processor, the Storage Manager (also called Database Control System), and Disk Storage. Every query flows through all three in sequence.

Q2. What is the overall structure of DBMS? The overall structure of DBMS consists of three functional components (Query Processor, Storage Manager, Disk Storage) and three levels of abstraction (Internal, Conceptual, External). Together these define both how the DBMS processes data and how different users see it.

Q3. What is the difference between DBMS structure and DBMS architecture? DBMS structure refers to the internal software components (Query Processor, Storage Manager, Disk Storage). DBMS architecture refers to the deployment model - 1-tier, 2-tier, or 3-tier - describing how clients, application servers, and database servers are arranged. These are different concepts.

Q4. What does the Query Optimizer do in DBMS? The Query Optimizer evaluates multiple possible execution plans for a query and selects the lowest-cost option based on factors like available indexes, table sizes, join order, and system resources. It is the reason that a well-indexed database returns results far faster than an unindexed one.

Q5. What is the role of the Buffer Manager in DBMS structure? The Buffer Manager controls the transfer of data between slow disk storage and fast main memory (RAM). It caches frequently accessed data pages in memory so the DBMS does not need to read from disk every time the same data is requested, dramatically improving performance.

Q6. What are the three levels of DBMS architecture? The three levels are the Internal Level (physical storage), the Conceptual Level (logical schema), and the External Level (user views). They are connected via schema mapping and together enable data independence.

Q7. Why is the Data Dictionary important in DBMS? The Data Dictionary stores metadata - information about tables, columns, data types, constraints, and relationships. Every time the DBMS processes a query, it consults the Data Dictionary to understand the structure of the database before accessing the actual data files.
